Industrial Hydraulic Screen Changer
Leading Manufacturers and Exporters of Backflush Type Continuous Screen Changer, Continuous Screen Changer, Double Piston Screen Changer, Double Plunger Continuous Screen Changer, Hydraulic Screen Changer, Hydraulic Screen Changer for Extruder, Plastic Extrusion Machine Screen Changer, Plate Type Screen Changer, Screen Changer Breaker Plate, Screen Changer For Plastic Recycling Plant and Self Cleaning Continuous Screen Changers from Pune.
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Type | Backflush Continuous Screen Changer |
| Material | Hardened Alloy Steel |
| Screen Size | 100-350 mm, Customizable |
| Pressure | Up To 35 MPa |
| Temperature | Up To 300-350°C |
| Capacity | 200-5000 Kg/hr Output |
| Feature | Self-Cleaning Backflush, No Production Stoppage |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Application | Plastic Extrusion, Pelletizing, Film Blowing, Sheet Extrusion, And Recycling Lines |
| Screen Diameter | 80 mm - 350mm |
| Filtration Area | 100 Cm² - 600 Cm² |
| Working Pressure | Up To 35 MPa |
| Working Temperature | Up To 300°C |
| Output Capacity | 100 Kg/hr - 2000+ Kg/hr |
| Cooling Method | Integrated Water Or Air Cooling |
| Advantages | Non-stop Filtration During Screen Change, Higher Production Efficiency, Stable Melt Pressure & Flow, Longer Service Life Of Extrusion Equipment, Suitable For High-output Recycling Plants |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |

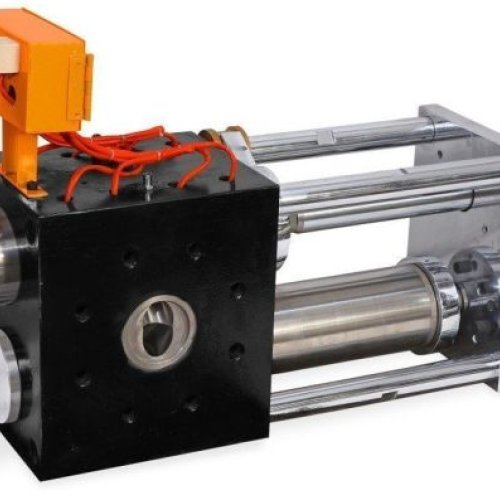

| Type | Automatic Double Piston Screen Changer |
| Material | Hardened Alloy Steel |
| Screen Diameter | 80-350 Mm, Customizable |
| Pressure | Handles Up To 35 MPa |
| Temperature | Works Up To 300°C |
| Capacity | Suitable For 100-2000+ Kg/hr Output |
| Feature | Continuous Filtration, No Production Stop |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |

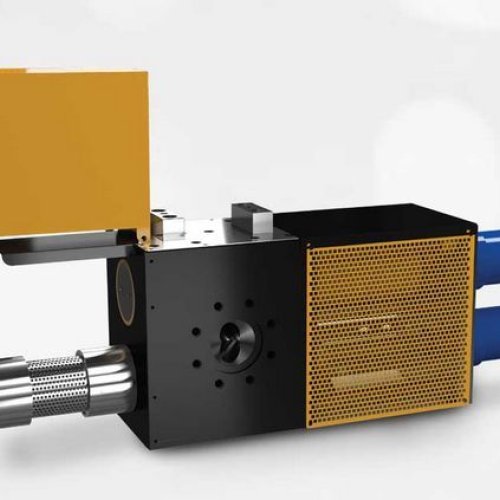

| Type | Automatic Double Plunger Continuous |
| Material | Hardened Alloy Steel, \ |
| Automatic Grade | Automatic |
| Cartridge Heater Voltage | 240/440V |
| Pressure | Handles Up To 35 MPa |
| Temperature | Works Up To 300-350°C |
| Capacity | 50-1800+ Kg/hr Output |
| Feature | Leak-proof Sealing, Self-cleaning |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Certification | ISO 9001:2008 |
| Brand Name | S INDIA MACHINES |
| Power | 5 KW - 50 KW |
| Automatic Grade | Automatic |
| Driven Type | Hydraulic |
| Material | Stainless Steel |
| Voltage | 380V/50Hz |
| Weight | 100 Kg - 500 Kg |
| Warranty | 1year |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |

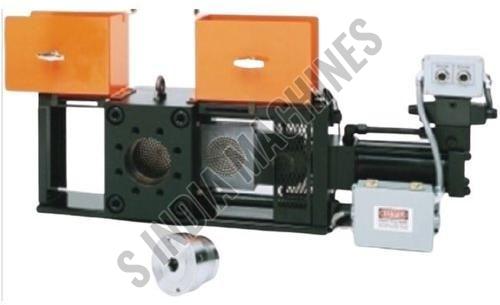

| Type | Hydraulic Screen Changer |
| Material | Stainless Steel |
| Compatibility | Suitable For Various Extruder Models |
| Size | Standard Size For Extruders |
| Maintenance | Regular Maintenance Recommended |
| Warranty | 1-year Limited Warranty |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Material | Steel |
| Screen Size | 80-350 mm |
| Filtration Area | 50-600 Cm² Depending On Model |
| Pressure | 25-35 MPa |
| Temperature | 300-350°C |
| Capacity | 50-2000+ Kg/hr Output |
| Feature | Quick Screen Change, Leak-proof Sealing |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |
| Application | Plastic Extrusion, Recycling, Compounding, Film, Sheet & Pelletizing Lines,Small To Medium Recycling And Extrusion Lines |
| Screen Plate Size | 80mm - 300 mm |
| Filtration Area | 50 Cm² - 400 Cm² |
| Operating Pressure | Up To 25-30 MPa |
| Working Temperature | Up To 300°C |
| Screen Changing Method | Manual Sliding Plate / Hydraulic Sliding Plate With Power Pack |
| Screen Diameter | 50 mm - 200 mm |
| Features | Simple Design, Quick Screen Changing, Compact Structure, Low Maintenance |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISI Certified |
| Country of Origin | India |

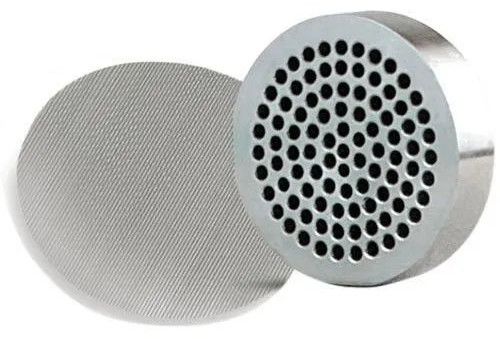

| Material | Stainless Steel |
| Diameter Range | 80 mm - 300 mm |
| Thickness | 20 mm - 60 mm |
| Hole Pattern | Precision Drilled Holes, Uniform Distribution |
| Hole Diameter | 1mm - 4 mm |
| Surface Finishing | Polished For Improved Flow |
| Working Temperature | Up To 300°C |
| Working Pressure | 25-35 MPa |
| Mounting | Fits Inside Hydraulic Or Manual Screen Changers |
| Function | Provides Mechanical Support, Ensures Uniform Melt Flow, Prevents Screen Damage, Improves Filtration Efficiency |
| Application | Plastic Extrusion And Recycling Lines |
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | ISO 9001:2008 |
| Country of Origin | India |

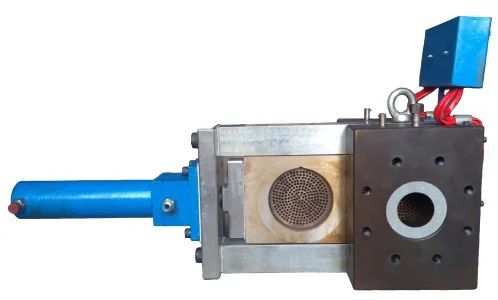

| Application | Plastic Recycling Extruder, Pelletizing Line, Film Extrusion |
| Operating Pressure | 25-35 MPa |
| Temperature Resistance | Up To 300°C |
| Screen Diameter Range | 80 mm - 300 mm |
| Filtration Area | 50 Cm² - 500 Cm² |
| Screen Changing Time | 2-3 Seconds (hydraulic Type) |
| Output Capacity | 50 Kg/hr - 1000+ Kg/hr |
| Features | Leak-proof Sealing, Quick Screen Change Without Stopping Machine, High Pressure Resistance, Long Service Life |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Automatic Self-cleaning Continuous Screen Changer |
| Material | Steel |
| Screen Size | 100-350 mm |
| Pressure | Handles Up To 35 MPa |
| Temperature | Operates Up To 300-350°C |
| Capacity | 200-5000 Kg/hr Output |
| Feature | Automatic Backflush, Nonstop Filtration |
